Taking shape: a quick Valley Line Southeast tour!

Here are some pics at key locations to give you a sense of what’s building—both infrastructure and excitement—along the Valley Line Southeast LRT line.

The City of Edmonton and TransEd Partners are well into construction season 2019. Much of the work is underground, getting drainage and electrical in place. But up on main stage, it’s beginning to look like an actual LRT system.

Take a look:

101 Street closure

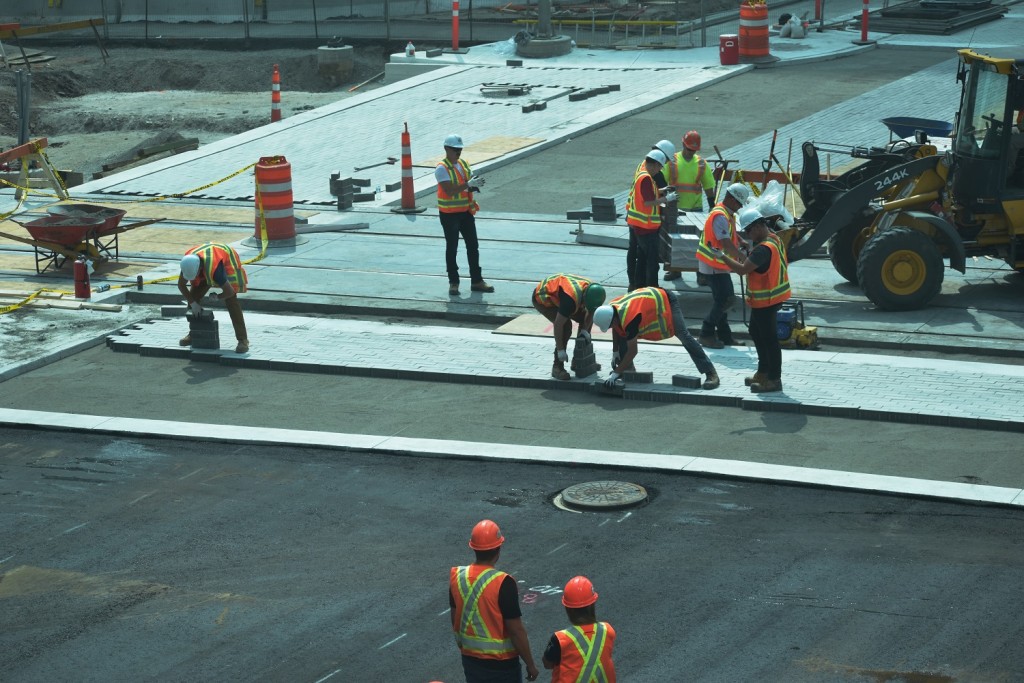

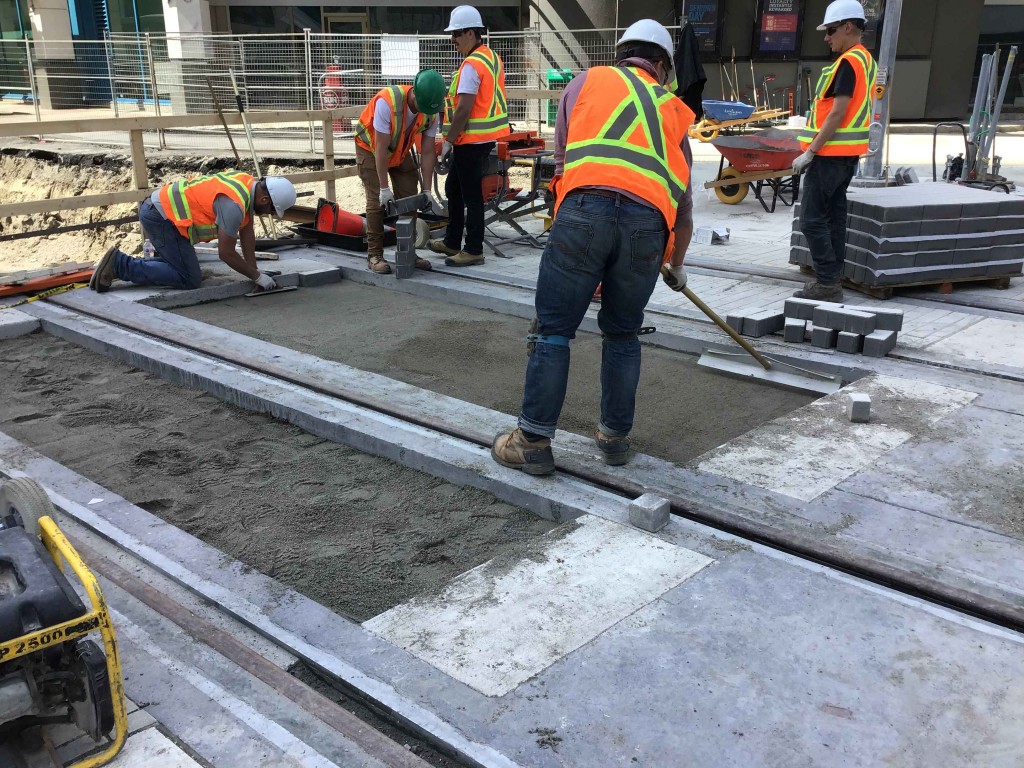

We start downtown at 101 Street, which was recently closed for 4 weeks to complete the new intersection. Above, you can see workers smoothing out bedding sand in order to place paving stones for the new crosswalk. You’ll also see the embedded rail in the road. This will be a common sight along the Valley Line, as the new low-floor style train runs mostly in road right-of-way.



DSC_0020

Here’s a wider shot giving more of a sense of how the intersection comes together. Having the decorative paving stones or similar aesthetics was part of the Valley Line’s Sustainable Urban Integration (SUI) guide. SUI is a set of design guidelines for the entire project, worked out with communities during public engagement to ensure the new LRT fits into the character of local neighbourhoods.



IMG_0207_edited

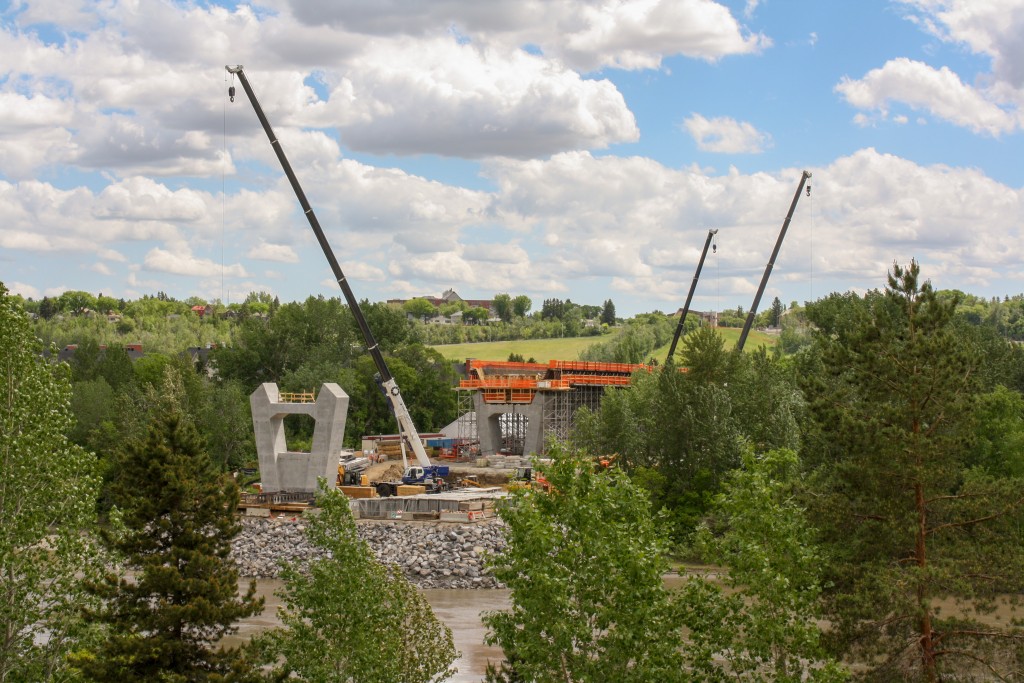

Off to the park! Looking south over the river valley, work is taking place on the elevated guideway that will form the southern approach for the new Tawatinâ Bridge (Tawatinâ is Cree for ‘valley’). The bridge will feature rail running in both directions, with a pedestrian/cyclist shared-use path underneath.



IMG_0196

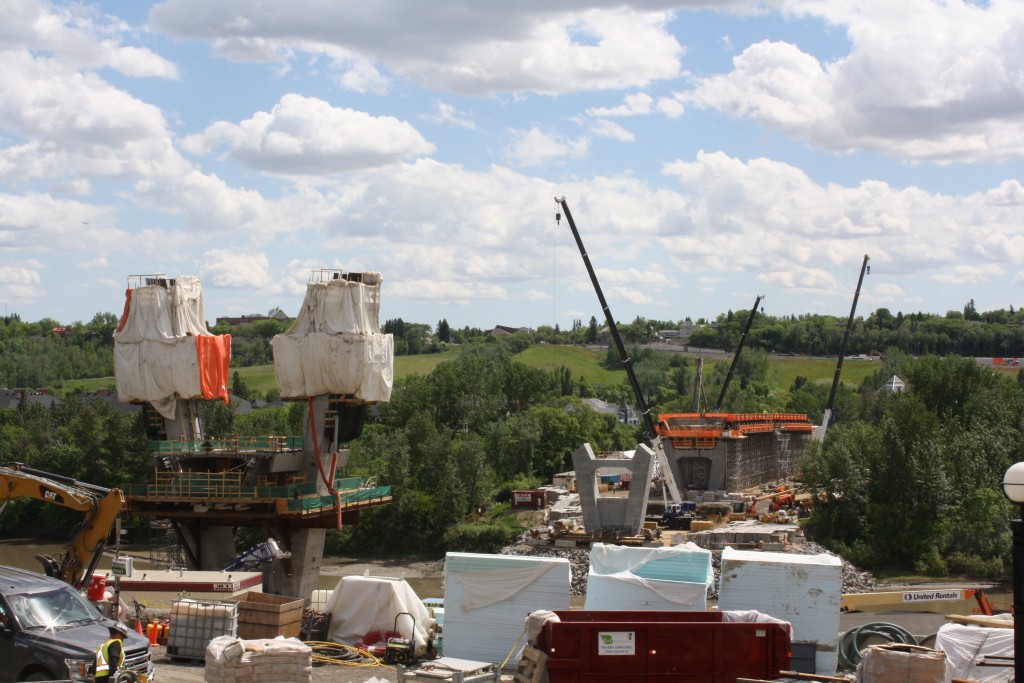

In this shot taken from the north side of the river valley, you can see the main bridge pier being built on the left. The foundation of this pier was delayed when an unknown mass of concrete was encountered during early construction.



IMG_0252_edited

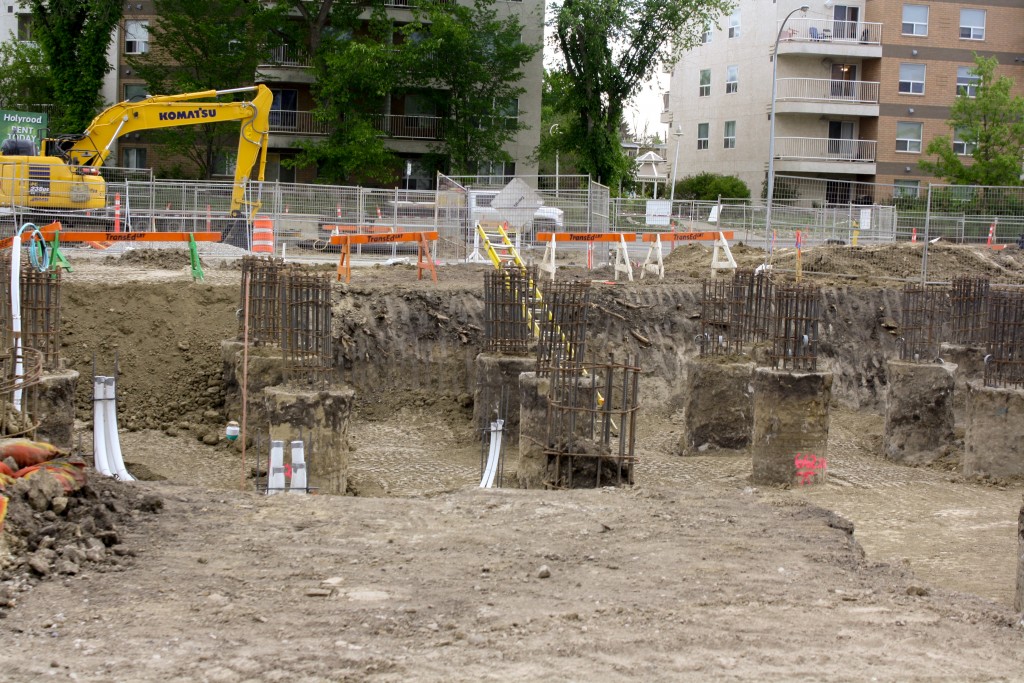

Now, into an actual neighbourhood: Strathearn. This is a wide shot of some of the work on 95 Avenue. TransEd recently closed 95 Avenue to road traffic until the end of the year to accelerate construction in the area.



IMG_0226_edited

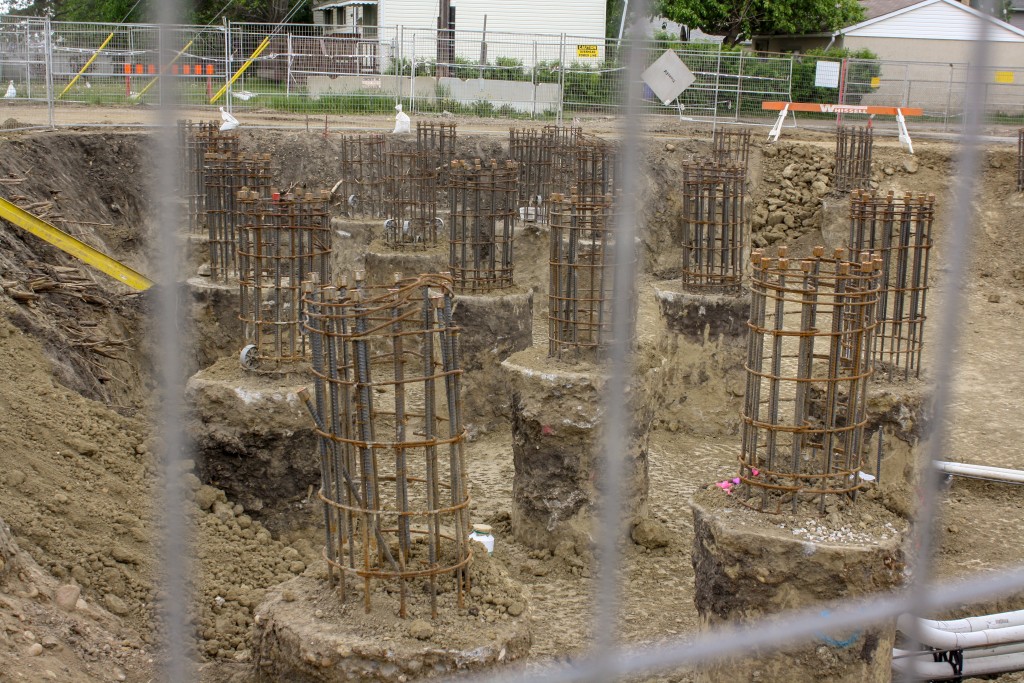

A close up of the same area. Rebar cages have been installed at the corner of 95 Avenue and 85 Street. These cages are the foundations for the future Traction Power Substation—a small building that works as an electrical converter, providing power to the LRT.



IMG_0246_edited

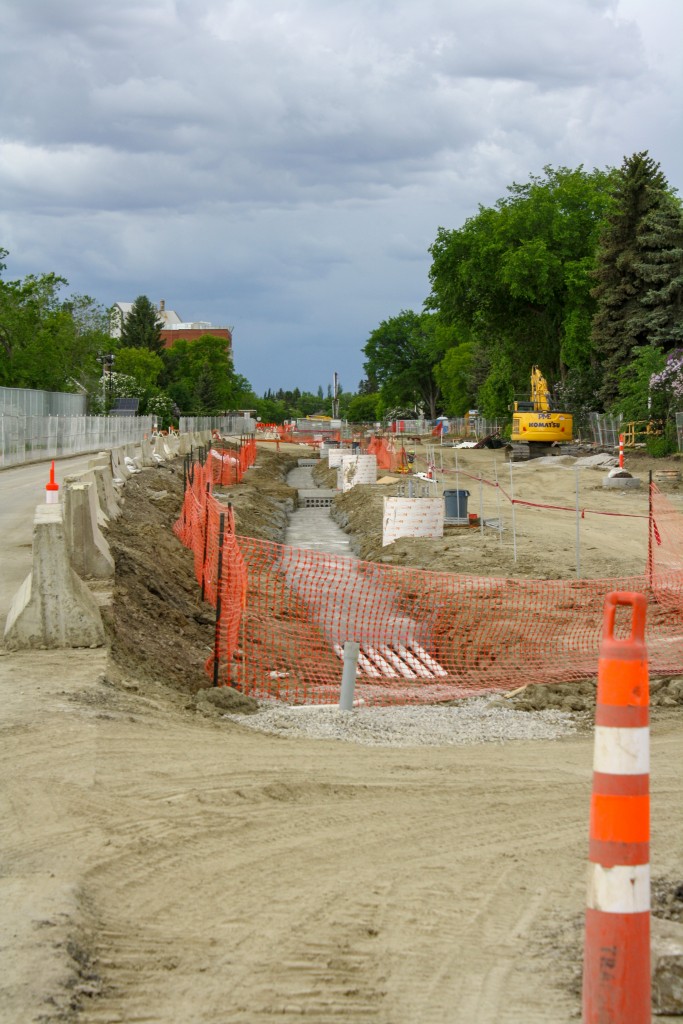

Looking west along 95 Avenue, note the grey pathway down the centre. This is the future duct bank, where the cables and communications systems for the LRT line are secured. The white round stumps to the right are the bases of the future catenary system—basically, the poles that connect the train to the power system.



IMG_0276_edited

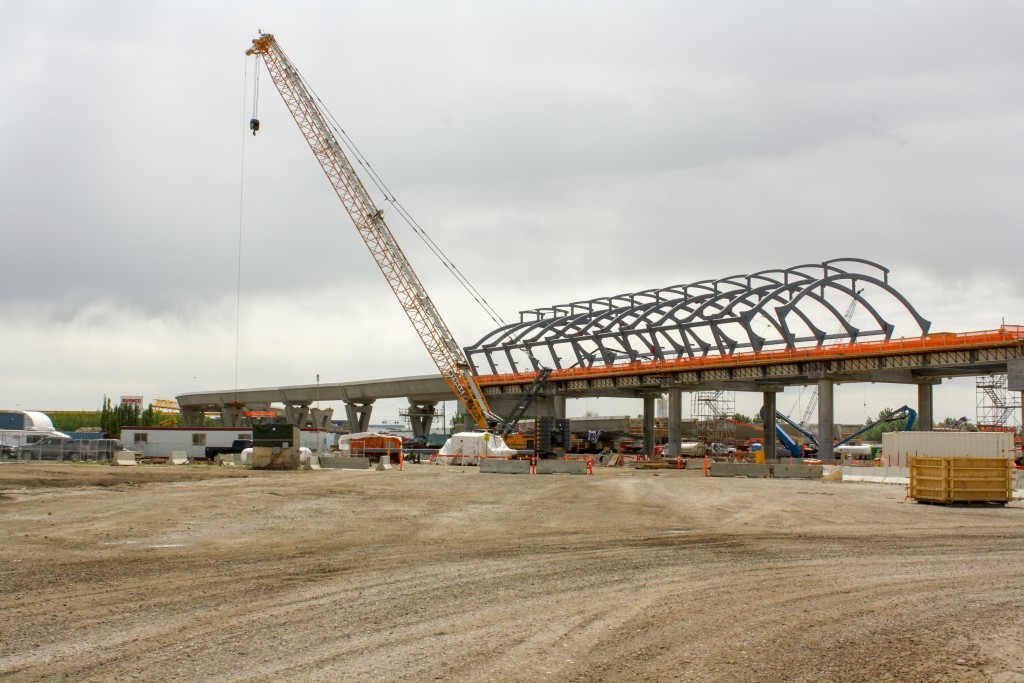

Final stop, Wagner, where the superstructure of the future Davies Station has begun to take shape. Davies Station is the only LRT station on the Valley Line Southeast. All other locations are low-floor ‘stops’, with heated shelter areas to keep Edmontonian fingers and toes toasty mid-winter.



37355_daviesstation_publicart2016-05-04-pdf

And here’s what the station is to look like, including the glass art by Shan Shan Sheng. One of the most striking features of the Valley Line project, the station will be a stand-out piece of architecture gracing Edmonton southeast.
Hope you enjoyed this little trip. We’ll check back in soon! 🙂
